MIFARE®-NFC Contactless SDK

MIFARE®-NFC Contactless SDK
  • Product Code: Product 610
  • Availability: In Stock
  • $249.00
- +

The ACR122U NFC reader is the world’s first NFC reader compliant with the CCID specification. The ACR122U and its token version, ACR122T, are designed to support not only MIFARE® and ISO 14443 Type A and B cards, but also NFC & FeliCa tags.

Comprehensive SDK – ACS provides a comprehensive collection of sample codes for device and contactless card programming using the latest versions of powerful object-oriented programming languages namely, Java, Delphi 7, Visual Basic 6, Visual C++ 6, Visual C++ 2005 (x64), Visual C# 2005 and Visual Basic .Net 2005. The extensive set of development tools and reference materials in the SDK allows one to use the ACR122U/ T for RFID-based solutions, such as e-payment, access control, personal identity verification, mass transit and toll road fare collection. With this complete ACR122 NFC Card Reader Software Development Kit, users can optimize the use of ACR122U/T for their contactless and NFC applications.

Peer-to-Peer Capability – As an additional SDK feature, ACS provides users with the option to experience a simulation of a real-world NFC peer-to-peer application – Smart Poster application. Two ACR122U/T NFC readers are needed for the peer-to-peer demo since one ACR122U/T acts as the smart card poster and the other one as the NFC device. The demo shows the capability of these two devices to exchange data via the peer-to-peer operating mode.

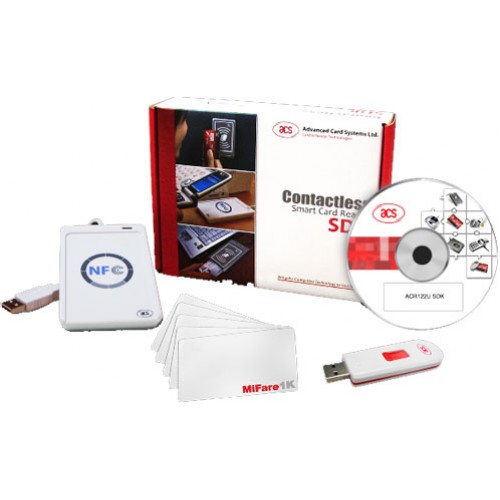

Smart Card Reader(s)
  • 1 x ACR122U NFC Contactless Smart Card Reader-Desktop
  • 1 x ACR122T NFC Contactless Smart Card Reader-Token
Test Card(s)/ Token(s)
  • 5 x Mifare 1K Cards
  • Software drivers
  • Tools and Utilities
    • ACR122U Tool – lets you to perform reader and card-related commands
    • QuickView – checks for proper driver installation
    • ACS Easy Key – allows you to change Mifare security settings
    • ACR122U Scripting Tool – allows you to send a sequence of commands to contactless cards
  • Sample codes
    • Demonstrate basic commands used to communicate with the cards and readers
    • Available in the following programming languages: Java, Delphi 7, Visual Basic 6, Visual C++ 6, Visual C++ 2005 (x64), Visual C# 2005 and Visual Basic .Net 2005
  • Demo Applications
    • NFC Peer-to-Peer Demo
    • Visitor Management System Demo
  • Reference Manuals
SDK Operating System Support
  • Win 2000, Win XP, Win Vista
  • Win XP x64, Win Vista x64
